• 18x 8 W RGBW LED Par

• 40° fixed beam angle

• Double bracket for easy floor positioning

• DMX and manual control in Auto run and Sound-controlled mode

• RGBW colour mixing, dimmer and strobe function

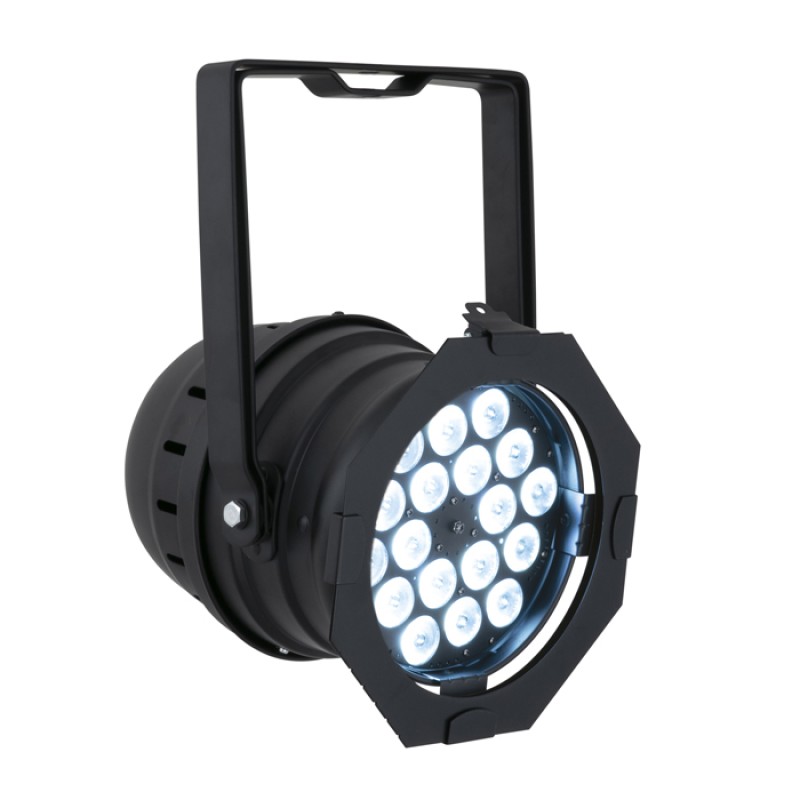

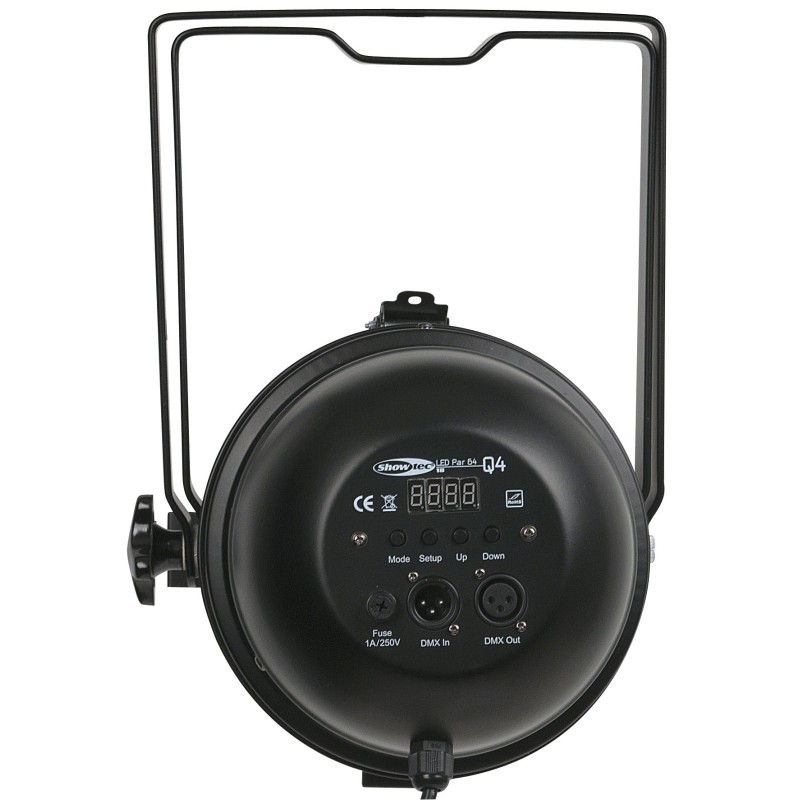

The Showtec Par 64 Short Q4-18 is a 18 x 8 watt RGBW LED Par with 40° fixed beam angle, suitable for indoor venues. Its short, compact design and double bracket enable easy floor positioning. The Par 64 Short Q4-18 can be controlled manually, via DMX and Master/Slave in either Manual, Auto Run and Sound-controlled mode. Equipped with a powerful colour mixing LED engine, dimmer and strobe function, it can create nice colourful effects, from vivid to pastel colours, up to a distance of 30 metres. The Showtec PAR 56 COB RGB comes with a 130 cm power cable and fits into any setting with either black and polished housing.

Specifications

Source

Light Source Type    LED

Light Source Power   8 W

Refresh Rate    7800 Hz

Par Model    64

Illuminance @ 2 m   3790 lx

Optical

Beam Angle (Circular)    40 °

Control and Programming

Control Mode    Auto, DMX, Master Slave, Sound

DMX Channels   4, 5, 8

Protocols    DMX

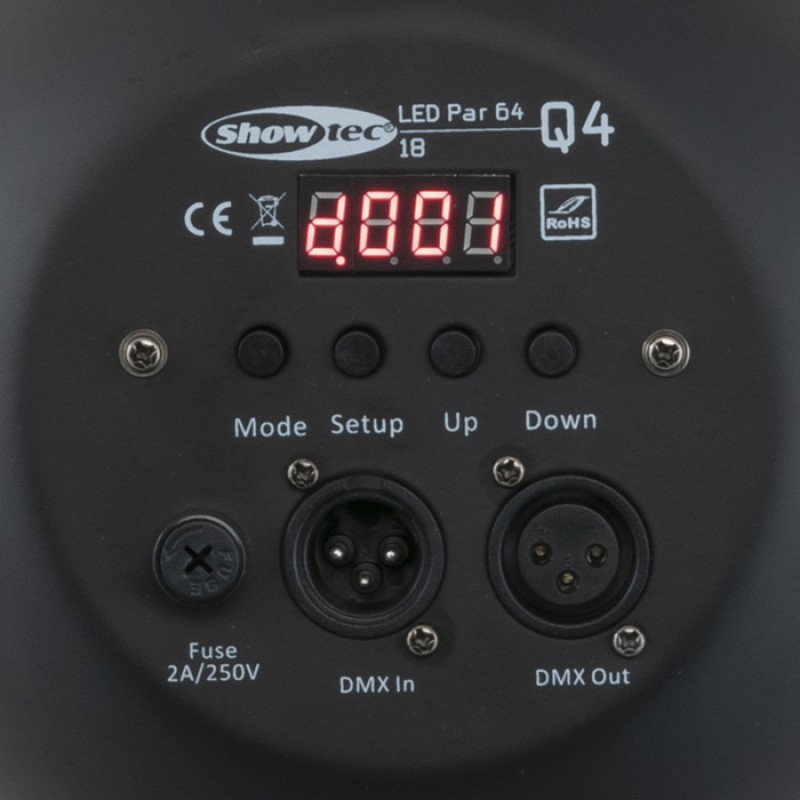

Display   7-segment

Dynamic Effects

Dimmer    0-100 %

Strobe   0-20 Hz

Electrical Specifications and Connections

Power Supply    100-240 V AC 50/60 Hz

Power Consumption   120 W

Power Connector In   Schuko Plug

DMX Connector In   XLR 3P

DMX Connector Out   XLR 3P

Cable Length   1.5 m

Mechanical Specifications

Length (mm)    290 mm (11.417″)

Width (mm)     230 mm (9.055″)

Height (mm)    230 mm (9.055″)

Weight   3 kg (6.614 lb)

IP Rating   IP20 (indoor use only)

Housing   Aluminium die-cast

Colour   Black

Product Properties

Cooling   Axial fan

Rigging

Mounting Options   Clamp, Surface

Thermal Specifications

Maximum Ambient Temperature   40 °C (104 °F)

Included Items

Included Cables   Fixed Cable

Included Accessories   Filterframe

Included Rigging    Bracket
