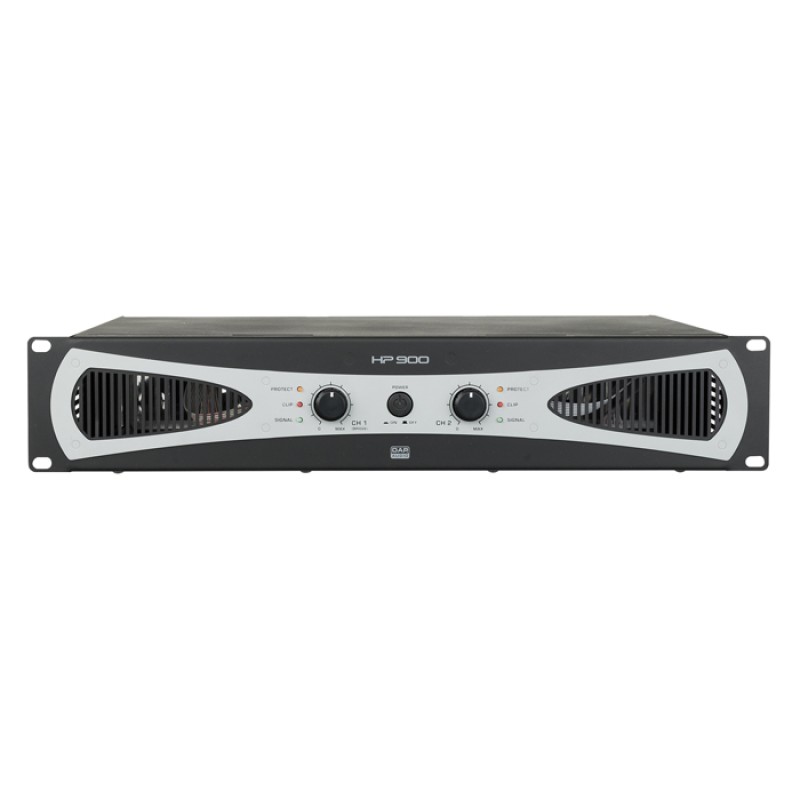

The DAP HP-900 is a simple yet effective and safe 2x 450 watt amplifier with bridge, parallel and stereo mode, suitable for audio installations at public places, such as clubs, bars and other small venues. Its output is sufficient for everyone to sing along and dance to their favorite tunes.
The HP-900 is safe to use since it is protected from clipping, overloading and overheating. It can be built into a 19-inch rack or case and has a 2 unit height. Rubber feet are included for placement on a cabinet. A power cable is also included.
Specifications
Outputs
2 ohms Stable No
Output per Channel into 8 ohms at 1 kHz 350 W
Output per Channel into 4 ohms at 1 kHz 450 W
Bridge Output into 8 ohms at 1 kHz 900 W
Output per Channel into 8 ohms from 20 Hz - 20 kHz 350 W
Output per Channel into 4 ohms from 20 Hz - 20 kHz 450 W
Bridge Output 8 ohms from 20 Hz - 20 kHz 900 W
Output Channels 2
Output Gain 32 dB
Output Mode Bridge, Parallel, Stereo
Output Connector Speaker Connector 4 pole
Inputs
Mono Inputs 2
Mono Input Connector 3-pin XLR
Mono Input Impedance 20000 Ω
Balanced Mono Input Sensitivity 1 dBu
Audio Specifications
THD Level < 0.5 %
Signal-to-noise Ratio > 100 dB
Slew Rate 13 V/μs
Amp Technology Class AB
Damping Factor 100 :1
Crosstalk 75 dBu
Frequency Response Minimum 10 Hz
Frequency Response Maximum 20000 Hz
Electrical Specifications and Connections
Power Supply 220-240 V AC 50 Hz
SMPS No
Power Consumption 1100 W
Fuse 6 A
Power Connector In IEC
Mechanical Specifications
Amplifier Airflow Front to back
Amplifier Cooling Axial fan
Height (mm) 88 mm (3.465″)
Width (mm) 483 mm (19.016″)
Depth (mm) 310 mm (12.205″)
Installation Depth (Excl. Connector) 310 mm (12.205″)
Flightcase Size 19"
Rack Units 2 U
Housing Metal
Colour Gray
Finish Powder Coating
Weight 10.6 kg (23.369 lb)
IP Rating IP20 (indoor use only)
Product Properties
Handles No
Electronic Protection Clip limiter (fixed), DC voltage, Overheat, Overload, Short circuit, Softstart, Thermal
