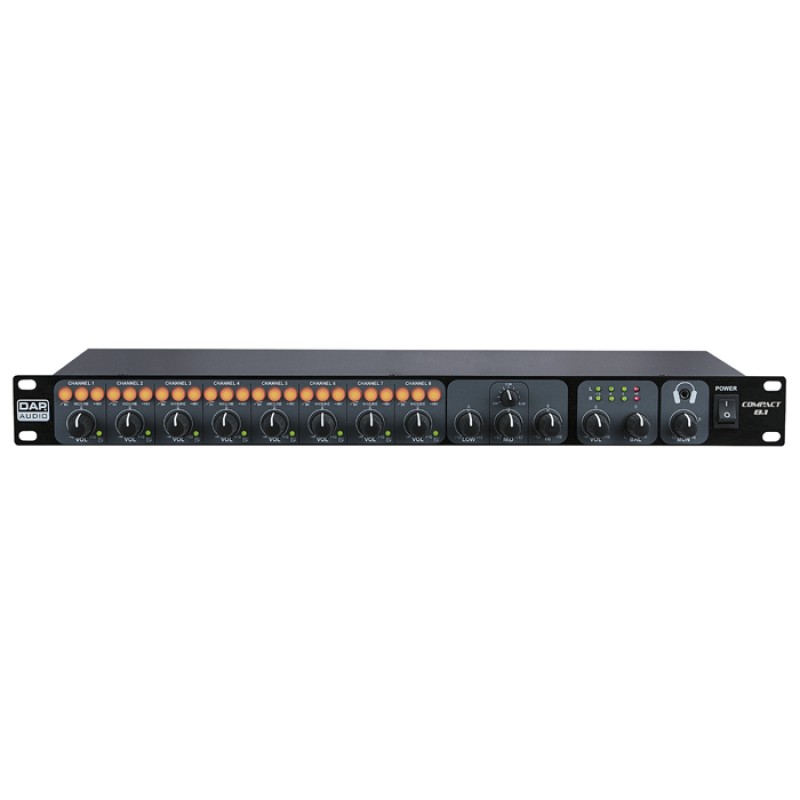

The DAP Compact 8.1 is a high quality 19” 1U microphone line mixer. With some smart features it distinguishes itself from other compact mixers. All inputs can be used for microphone or line level inputs and have high pass filters and phantom power selections for each input separately. It has a balanced master output, a record output and a monitor output. The headphones level also influences the monitor output which makes this an independent extra output for a second area or zone.
The main EQ has a mid-frequency sweep which helps you to eliminate the feedback frequency of your system if you use the Compact 8.1 as a microphone mixer. All channels have signal / Clip indicators which gives you a direct overview of your input signals even from a long distance. The Compact 8.1 combines a clear user interface with maximum inputs and smart functionalities on a 1U mixer.
Specifications
Inputs
Mono Inputs 8
Mono Input Connector 3-pin XLR
Stereo Inputs 8
Stereo Input Connector RCA
Outputs
Main Outputs 1
Main Output Connector 3-pin XLR
Monitor Outputs 1
Monitor Output Connector RCA
Headphone Output 1
Headphone Output Connector TRS balanced 3.5 mm
Record Output 1
Record Output Connector RCA
Audio Specifications
THD Level < 0.01 %
Signal-to-noise Ratio > 100 dB
Frequency Response Minimum 20 Hz
Frequency Response Maximum 20000 Hz
Phantom Power 48 V
Sound Editing
Parametric Main Equalizer 3 Bands
Main Output Equalizer Gain Range 12 dB
Main Output Fixed Frequencies 80, 330 - 2.000, 12.000 Hz
