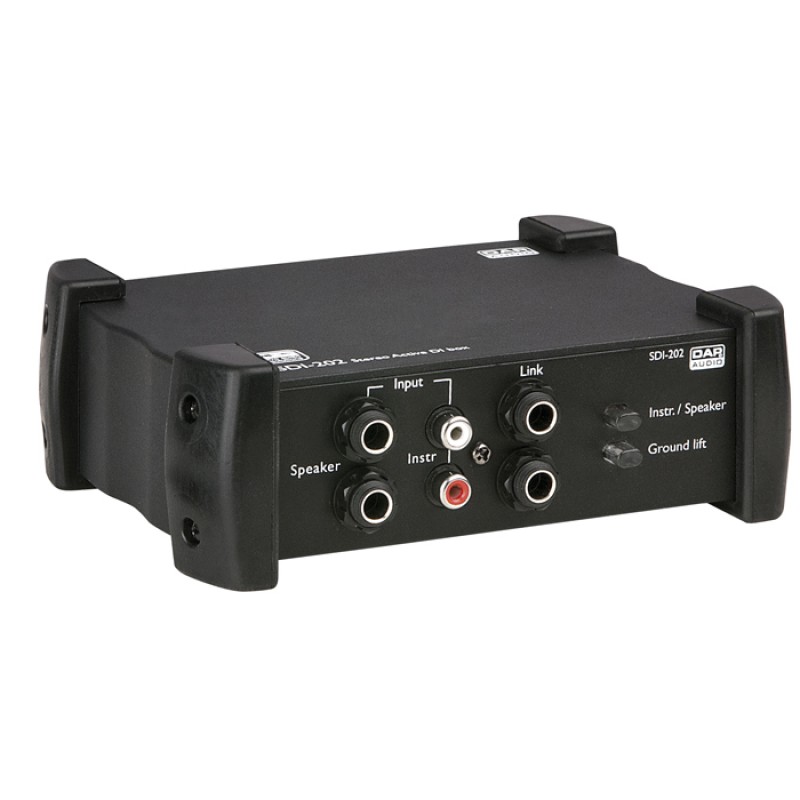

The DAP SDI-202 is a multifunctional DI-Box. It can be used to amplify a signal or create a balanced output. Activating the ground lift provides an even frequency response to any input signal with the benefit of canceling out interference, hums and buzzes. You can switch between instrument and speaker mode.
Instrument mode can be used to connect an instrument with high output impedances, such as an electric guitar or acoustic guitar with a piezo-ceramic pickup. In addition, you can connect electrical devices with an unbalanced output, such as a keyboard or DJ mixer without balanced outputs.
Speaker mode allows you to balance the output of a guitar amp to create a clean, low-level signal, allowing your signal to be driven through long cables with no problem.
Specifications
Inputs
Mono Inputs 2
Mono Input Connector RCA, TS unbalanced 6.3 mm
Balanced Mono Input Nominal Level 9 dBu
Balanced Mono Input Maximum Level 39 dBu
Mono Input Impedance 47 Ω
Outputs

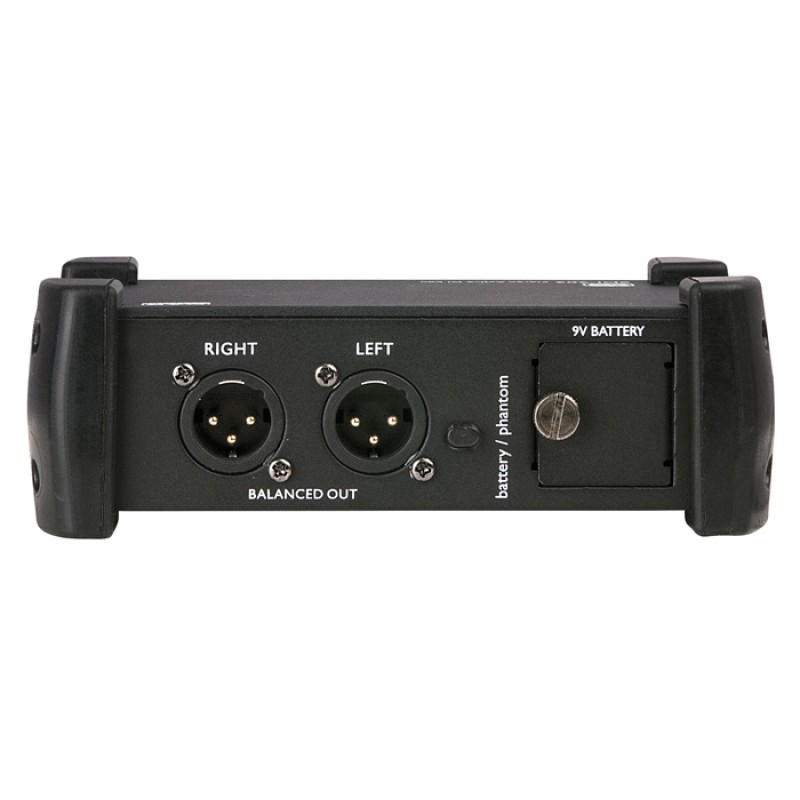

Main Outputs 2
Main Output Connector 3-pin XLR
Main Output Impedance 600 Ω
Audio Specifications
THD Level < 0.005 %
Signal-to-noise Ratio > 105 dB
Frequency Response Minimum 10 Hz
Frequency Response Maximum 40000 Hz
Phantom Power 18 V, 24 V, 48 V
Battery
Battery Type 9 V block PP3
Mechanical Specifications
Height (mm) 53 mm (2.087″)
Width (mm) 158 mm (6.221″)
Length (mm) 135 mm (5.315″)
Housing Metal
Weight 0.7 kg (1.543 lb)
IP Rating IP20 (indoor use only)
Colour Black
Product Properties
LED Indicators Ground lift, Inst. - Speaker, Operation mode, Power
