• 2-channel USB-Audio interface

• Suitable for PC and MAC

• Low-noise preamp

• XLR and (mini)jack headphone output

• USB-powered / no additional power supply

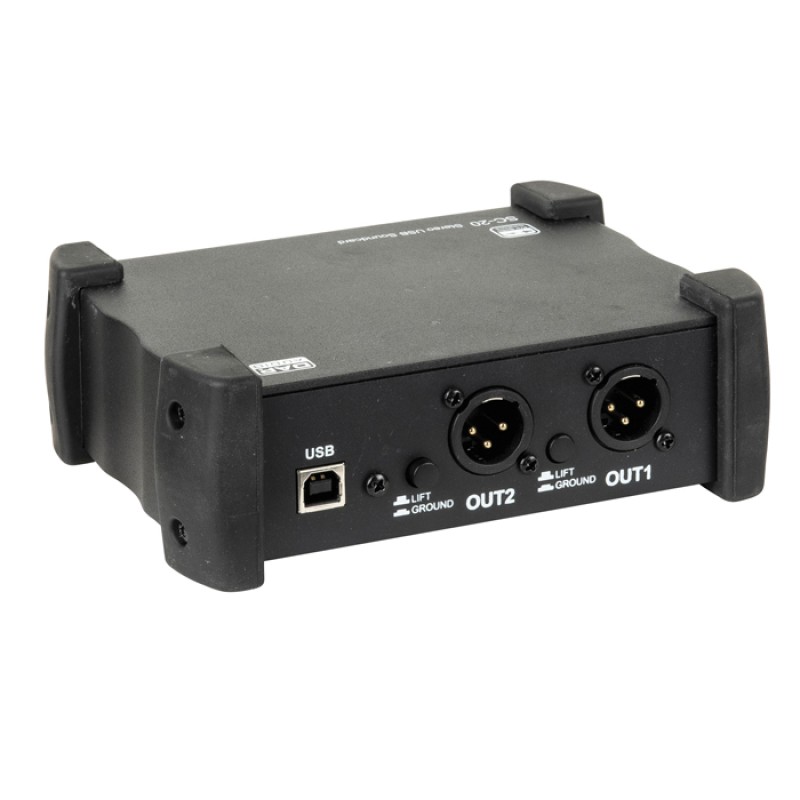

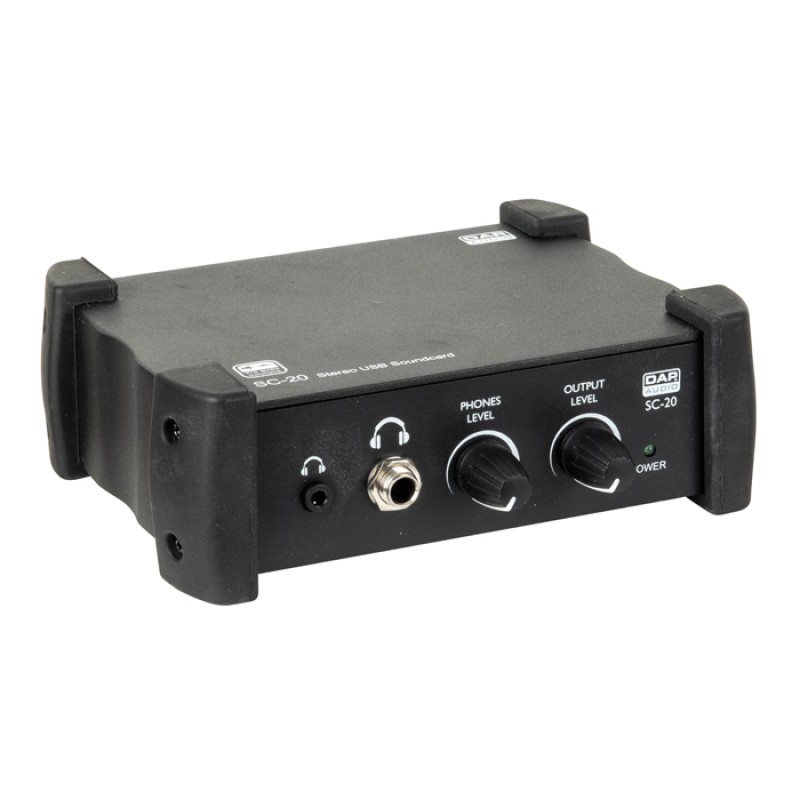

The DAP SC-20 Stereo USB Soundcard is an easy-to-use 2-channel USB-Audio interface with XLR and (mini)jack headphone output, suitable for sending a stereo PC / MAC audio signal to a mixer, speaker set or other audio device. The device is directly powered by its USB-Connection and needs no additional power supply or driver installation. The SC-20 is equipped with a low-noise preamp for a clear and clean sound and manually adjustable headphone and XLR-output volume.

Specifications

Outputs

Main Outputs          2

Main Output Connector                 3-pin XLR

Headphone Output              2

Headphone Output Connector             TRS balanced 3.5 mm, TS balanced 6.3 mm

Audio Specifications

Frequency Response Minimum                20 Hz

Frequency Response Maximum                20000 Hz

Software Specifications

Supported Operating Systems              Mac, Windows

Internal Storage

User Presets            No

Electrical Specifications and Connections

Power Supply              5 V DC

Power Consumption                 1 W

Power Connector In              USB

Data Connector In                  USB

Mechanical Specifications

Height (mm)               53 mm (2.087″)

Width (mm)                  134 mm (5.276″)

Length (mm)                157 mm (6.181″)

Housing                  Aluminium, Iron

Colour                 Black

Finish                Painted

Weight             0.678 kg (1.495 lb)

IP Rating              IP20 (indoor use only)

Product Properties

LED Indicators              Power

Included Items

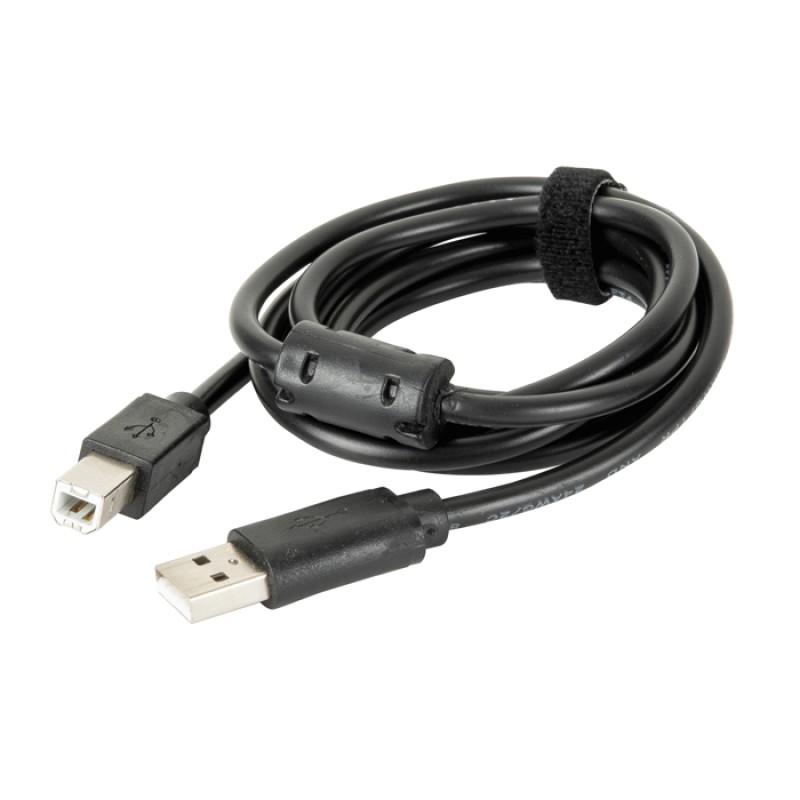

Included Cables            USB-A - USB-B cable
