• 3x 10 W RGBWA LED Spot

• Silent, fanless operations

• Double bracket for easy floor positioning

• Flicker free

• Dimmer and strobe function

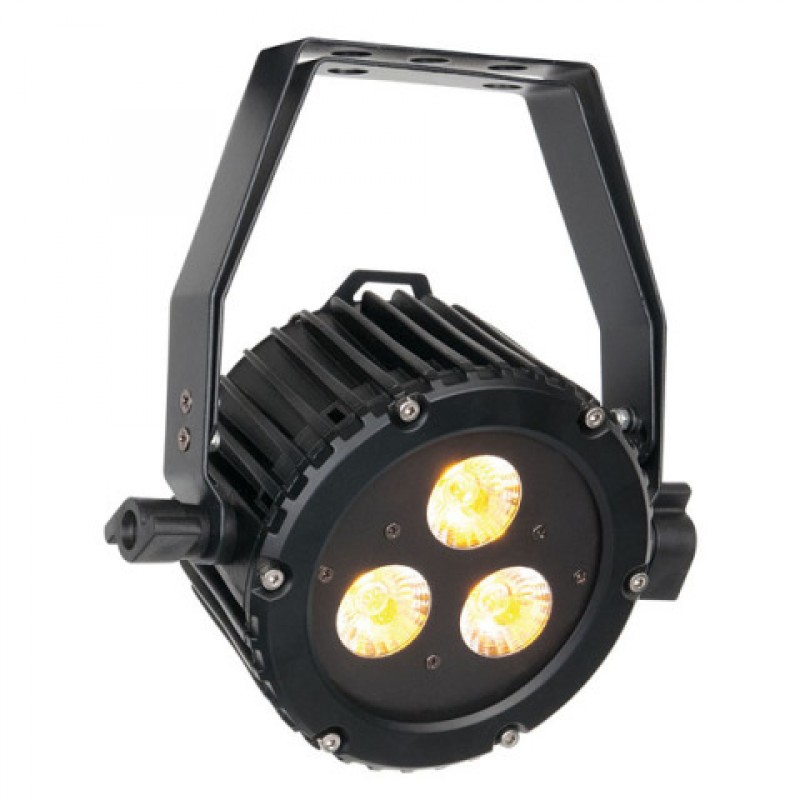

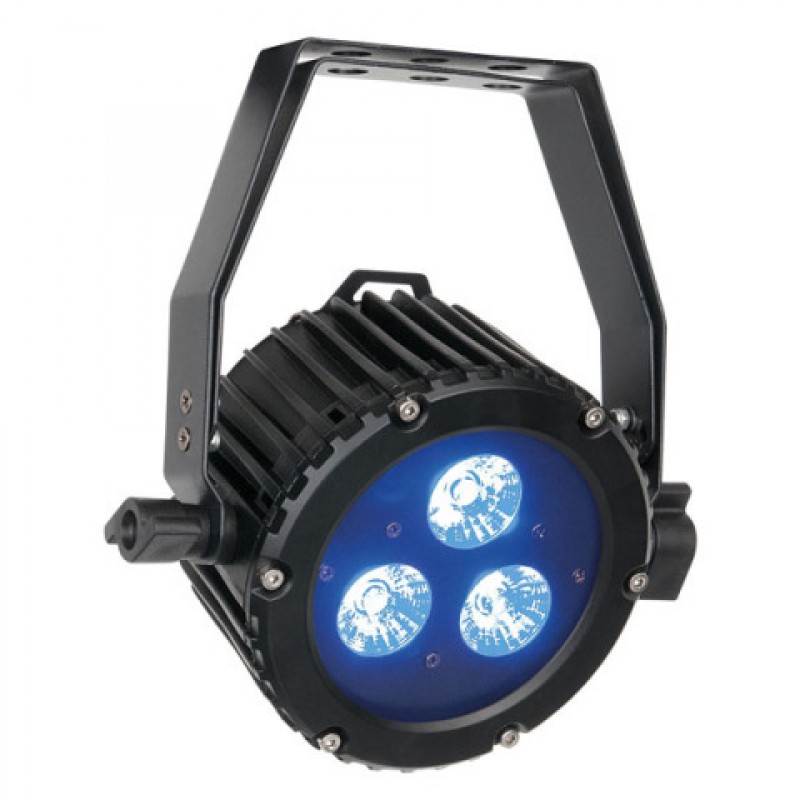

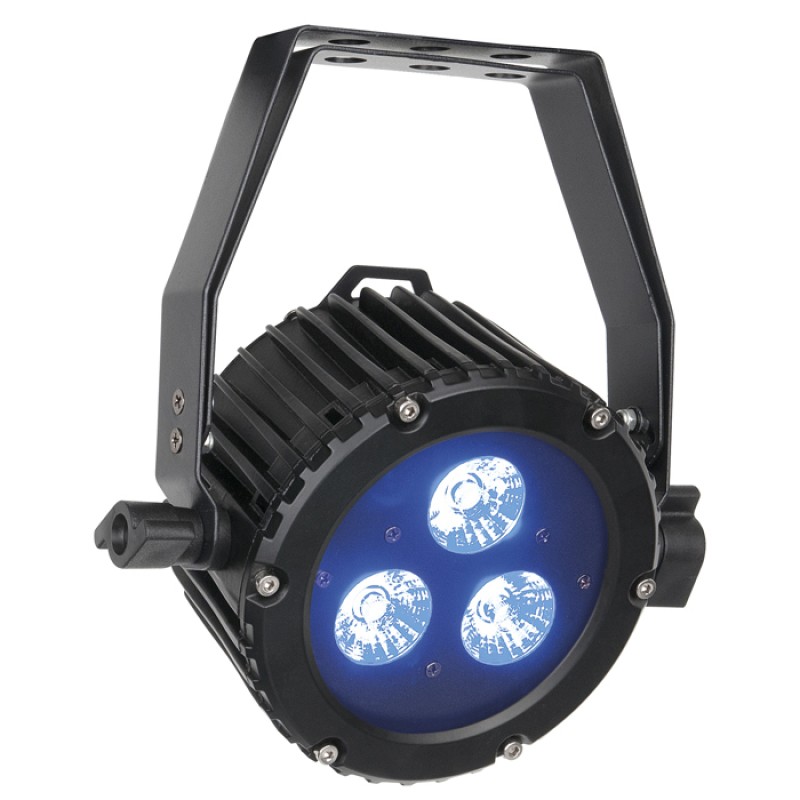

The Showtec Power Spot 3 Q5 is a 3x 10 watt RGBWA LED Spot with silent and flickerfree operations, suitable for indoor venues. Its double bracket enable easy floorpositioning and makes it fit for either fixed and mobile applications. Equipped with 5 colours (Red, Green, Blue, White and Amber), the Power Spot 3 Q5 creates a beautiful, bright output, from subtle pastels to punchy saturates and nearly any temperature of white. Its colour engine, 0 - 100 % dimmer and 0 - 20 Hz strobe functions are controllable via DMX and Master/Slave in either Manual, Auto run and Sound-controlled mode with many available built-in programs. A 1.5 m power cable is included.

Specifications

Source

Light Source Type   LED

Light Source Quantity   3

Light Source Power   10 W

LED Colour Type    RGBWA

Refresh Rate   7800 Hz

Illuminance @ 2 m   875 lx

Luminous Flux (Total)   781 lm

Optical

Beam Angle (Circular)    25 °

Control and Programming

Control Mode    Auto, Built-in Program, DMX, Master Slave, Static Dimmer

DMX Channels    5, 7, 9

Protocols    DMX

Display7-segment

Dynamic Effects

Dimmer    0-100 %

Strobe    0-20 Hz

Electrical Specifications and Connections

Power Supply    100-240 V AC 50/60 Hz

Power Consumption   32 W

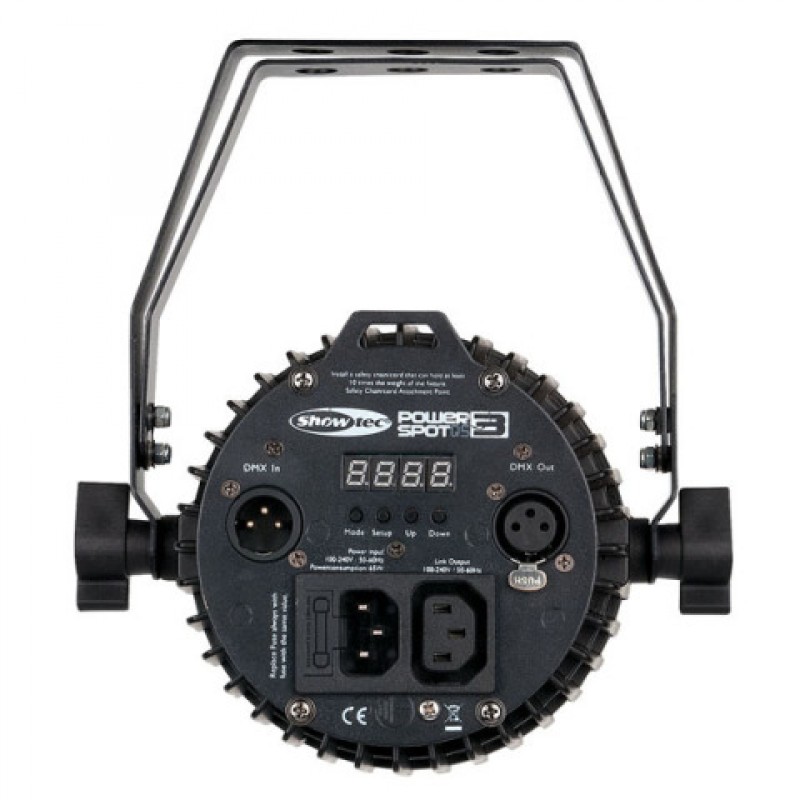

Power Connector In  IEC

Power Connector Out   IEC

DMX Connector    XLR 3P In/Out

DMX Connector In    XLR 3P

DMX Connector Out   XLR 3P

Cable Length   1.5 m

Mechanical Specifications

Length (mm)    200 mm (7.874″)

Width (mm)     90 mm (3.543″)

Height (mm)    224 mm (8.819″)

Weight    1.6 kg (3.527 lb)

IP Rating   IP20 (indoor use only)

Housing    Aluminium die-cast

Colour   Black

Product Properties

CoolingConvection

Rigging

Mounting Options    Clamp, Surface

Safety Attachment   Yes

Thermal Specifications

Maximum Ambient Temperature    40 °C (104 °F)

Minimum Operating Temperature   -10 °C (14 °F)

Included Items

Included Cables    IEC cable

Included Rigging   Bracket
