• Even and thin haze ensures no visible cloudy effect on stage

• 120 ml/min

• Customizable output direction gives extra flexibility

• Extreme silent operation due to CO₂ supply

• Output and fan speed remote controllable by DMX and W-DMX

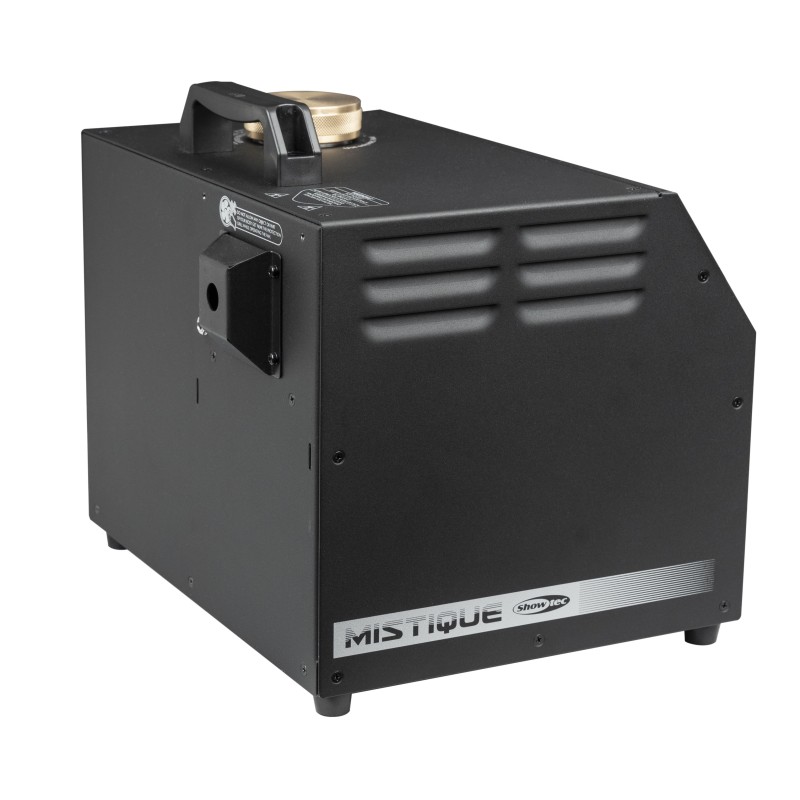

The best special FX are the ones which are almost invisible but in the meantime create the perfect mood for your event. Presenting the Showtec Mistique CO₂ Hazer. This hazer produces an extremely fine haze due to the combination of low pressurised CO₂ and a high quality oil-based Mistique dedicated Hazer-liquid. The corresponding smoke particles of the Mistique are so fine that they don’t cloud the stage, leave no residue on equipment or on stage, do not interfere with lighting plans and have a long-lasting effect. For TV-applications especially the Showtec Mistique CO₂ Hazer embodies the perfect solution to many challenges. It produces a haze without disturbing any filming going on. The units are extremely silent because there is no pump to generate any kind of noise. The pressure of the CO₂ is enough to create the desired effect on stage. Another advantage of the fine haze is its complete transparency. Only its effect is visible without adding any kind of unwanted colour to the stage. Showtec did call the hazer “Mistique” for a reason and seeing is believing.

Note: Do not fill the fluid tank more than 75 %. Be careful not to exceed the maximum fluid level, this can lead to pressure errors or damage the device.

Specifications

Electrical Specifications and Connections

Power Supply   100-240 V AC 50/60 Hz

Power Consumption    1250 W

Power Connector In    powerCON TRUE1

Power Connector Out    powerCON TRUE1

DMX Connector    XLR 3P In/Out, XLR 5P In/Out

DMX Connector In    XLR 3P, XLR 5P

DMX Connector Out    XLR 3P, XLR 5P

Cable Length    1.5 m

Warm-up Time    6 min

Mechanical Specifications

Output Capacity    140 m³/min (4944.1 ft³/min)

Output Direction    Up

Housing    Metal

Colour    Black

Fluid Consumption    120 ml/min (4.058 oz/min)

Fluid Tank Capacity    2.5 L

Gas Consumption/hour    0.36 kg/h (0.794 lb/h)

Gas Pressure Minimum    3.4 bar

Gas Pressure Maximum    4.1 bar

Length (mm)    503 mm (19.803″)

Height (mm)    310 mm (12.205″)

Width (mm)   334 mm (13.15″)

Weight   17 kg (37.479 lb)

IP Rating    IP20 (indoor use only)

Control and Programming

Control Mode    DMX, Manual, Timer

DMX Channels   1, 3, 5

Wireless    Wireless DMX

Display    Touch

Product Properties

Gas Connection   Quick-Lock

Gas Type    CO₂, N₂

Thermal Specifications

Maximum Ambient Temperature    45 °C (113 °F)

Minimum Ambient Temperature    5 °C (41 °F)

Included Items

Included Cables    powerCON TRUE1 cable
