- 1000 W RMS, max SPL of 134 dB at 1m (column)
- Multifunctional setup with two height options for optimum coverage
- Bi-amp satellite
- Microphone, line and Bluetooth 5.0 inputs with TWS
- Cables, mounting poles and spacer included
Buy a pair in black for £2,200 or in white for £2,430. Add a full set of cases for just £300 extra!

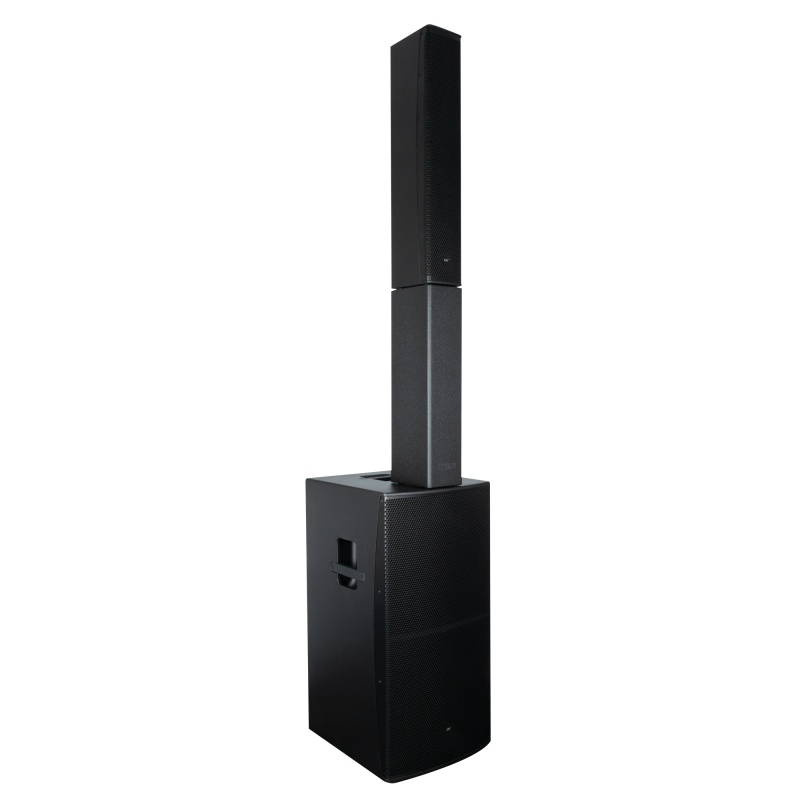

The DAP Frigga is an active PA speaker system with one subwoofer and one column speaker, suitable for singer-songwriters, corporate presenters, mobile DJs, nightlife venues, and bands. It offers three inputs: XLR microphone input with gain and clip indicator, XLR line input with passthrough, and Bluetooth with TWS support. The mixed output combines all signals. The SUB level control and Master level adjust the balance and volume. Status LEDs indicate the amplifier status.
The Frigga features an active dual 12" subwoofer with a built-in amplifier for the column speaker. The column speaker includes six 4" neodymium midrange drivers and a 1.5" neodymium compression driver. The built-in amplifier delivers 1000 W RMS (2000 W peak) across three channels. Two mounting poles adjust the height for various setups.
The Frigga comes with cables, mounting poles, and spacers and is available in black or white. Please note that microphone and line signals are not transmitted via Bluetooth when using TWS.
Specifications:
Outputs
Power Amplifier RMS Output 1000 W
Power Amplifier Peak Output 2000 W
Top Cabinet High Driver Power 250 W
Top Cabinet Low Driver Power 250 W
Subwoofer Power 500 W
Passive Output Connector Speaker Connector 4 pole
Main Outputs 1
Main Output Connector 3-pin XLR
Inputs
Mono Inputs 2
Mono Input Connector 3-pin XLR
Audio Specifications
THD Level < 0.3 %
Signal-to-noise Ratio > 105 dB
AD/DA Convertor Sample Rate 48 kHz
Amp Technology Class D /Class H
Speaker System Active Subwoofer/ Active Bi-amp 2-way
Speaker Sensitivity (1 W/1 m) 96 dB
Max. SPL Subwoofer at 1 m 132 dB
Max. SPL Top Cabinet at 1 m 134 dB
DSP Processor Bitrate 24-bit
Frequency Response Minimum 40 Hz
Frequency Response Maximum 20000 Hz
Woofer Diameter 12 "
Woofer Voice Coil Diameter 2.5 "
Woofer Magnet Type Ferrite
Satellite Woofer Diameter 4 "
Satellite Woofer Voice Coil Diameter 1 "
Satellite Woofer Magnet Type Neodymium
Compression Driver Diameter 1 "
Compression Driver Voice Coil 1.8 "
Compression Driver Magnet Type Ferrite
Subwoofer Dispersion Angle (Horizontal) 360 °
Subwoofer Dispersion Angle (Vertical) 180 °
Satellite Dispersion Angle (Horizontal) 110 °
Satellite Dispersion Angle (Vertical) 30 °
Electrical Specifications and Connections
Power Supply 100-240 V AC 50/60 Hz
Power Consumption 1100 W
Power Connector In Power Pro Blue
Power Connector Out Power Pro Grey
Mechanical Specifications
Top Cabinet Height 765 mm
Top Cabinet Width 135 mm
Top Cabinet Depth 200 mm
Subwoofer Height 865 mm
Subwoofer Width 430 mm
Subwoofer Depth 485 mm
Material Plywood
Top Cabinet Weight 8 kg
Subwoofer Weight 25 kg
IP Rating IP20 (indoor use only)
Colour Black or White
Thermal Specifications
Maximum Ambient Temperature 40 °C (104 °F)
Minimum Ambient Temperature -20 °C (-4 °F)
Included Items
Included Cables Power Pro Cable, Speakercable
DAP Frigga Column Speaker System
- Brand: DAP Audio
- Product Code: D3880
- Availability: 5-7 Days
-
£1,117.00
- Ex Tax: £930.83
-
- 2 or more £1,100.00
