- 90 W LED Beam Moving Head
- 13 colours + white & 11 gobos + open
- 8-facet rotating prism & motorised focus
- DMX, IR & Master/Slave control
- Frost & Flower effect

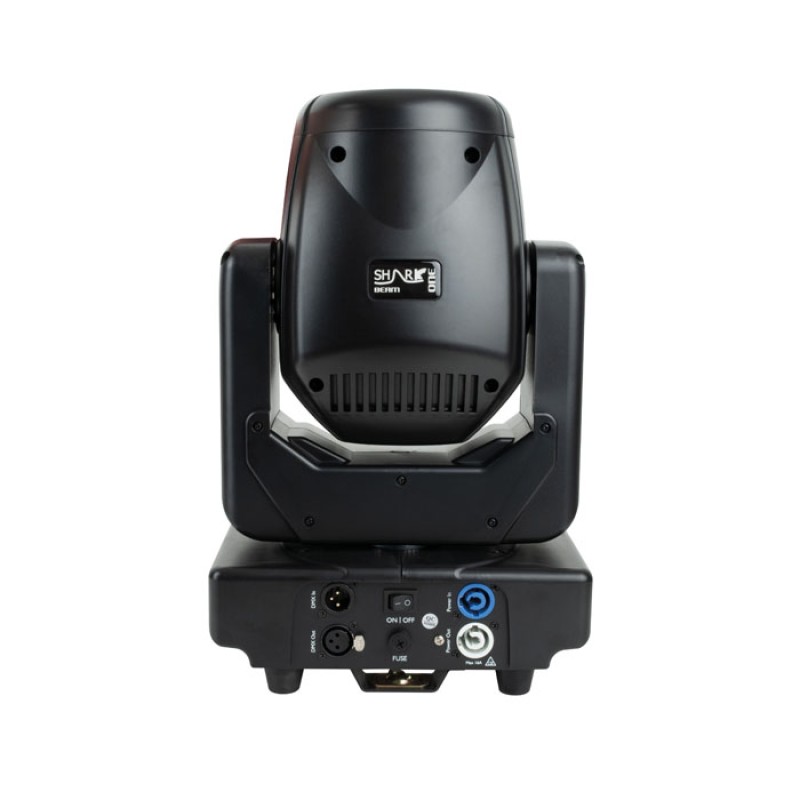

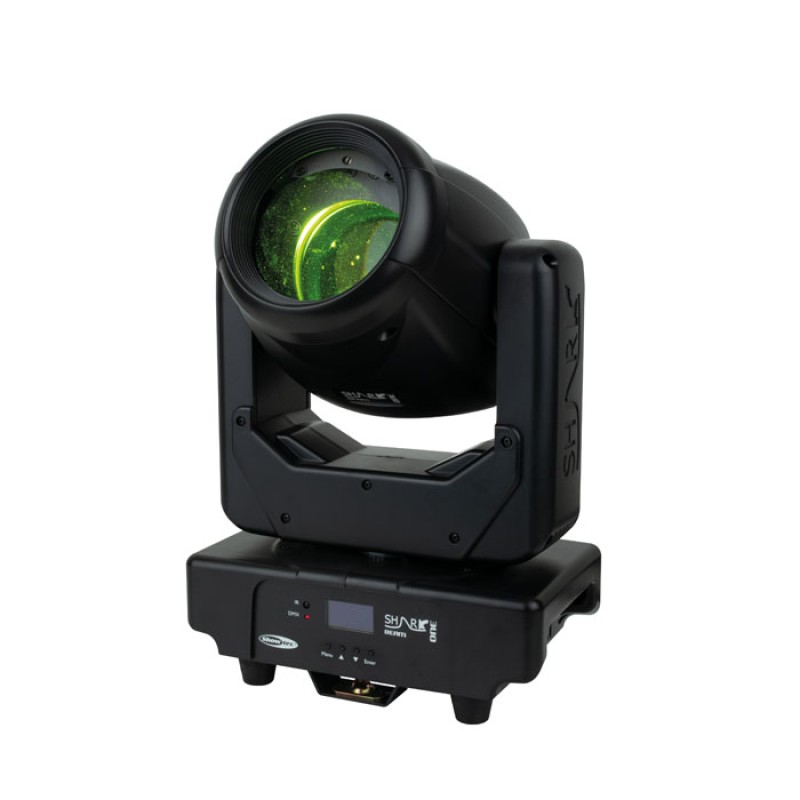

The Showtec Shark Beam One is a 90-watt LED beam moving head with a beam angle of just 3° and a number of impressive effects on board. Thirteen colours plus open and a 8-facet rotating prism allow it to put on colourful, dynamic light displays. No fewer than eleven gobos add amazing effects to the mix, while the motorised focus allows images to look razor sharp. The Shark Beam One is also dimmable and it’s capable of producing frost and flower effects too. It can run in DMX, auto or sound modes as a master or slave, or it can be operated using the included remote control.Specifications
Source
Light Source Type LED
Light Source Quantity 1
Light Source Power 90 W
LED Colour Type White
Illuminance @ 2 m 155401 lx
Illuminance @ 3 m 69067 lx
Illuminance @ 5 m 24864 lx
Luminous Flux (Total) 1743 lm
CRI 75
CCT 9800 K
Optical
Beam Angle Max. (Circular) 3 °
Frost Yes
Focus Motorised
Iris No
Control and Programming
Control Mode Auto, DMX, IR, Master Slave, Sound
DMX Channels 8, 15
Protocols DMX
Display OLED
Dynamic Effects
Dimmer 0-100 %
Strobe 0-25 Hz
Shutter Yes
Prism 1 8-facet Circulair
Prism Overlay No
Prism Index & Rotate Yes
Framing Shutters No
Colour System Colour Wheel
Colour Wheel Index & Rotate Yes
Dichroic Colour Wheel 1 13 + Open
Gobo System Metal
Gobo Wheel Index & Rotate Yes
Gobo Wheel 1 11 + Open
Movement
Pan 540 °
Tilt 210 °
Electrical Specifications and Connections
Power Supply 100-240 V AC 50/60 Hz
Power Consumption 120 W
Fuse 2 A
Power Connector In Power Pro Blue
Power Connector Out Power Pro Grey
DMX Connector XLR 3P In/Out
DMX Connector In XLR 3P
DMX Connector Out XLR 3P
Mechanical Specifications
Length (mm) 246 mm (9.685″)
Width (mm) 154 mm (6.063″)
Height (mm) 385 mm (15.158″)
Weight 6.5 kg (14.33 lb)
IP Rating IP20 (indoor use only)
Housing Plastic
Colour Black
Product Properties
Cooling Axial fan
Rigging
Safety Eyes 1
Thermal Specifications
Maximum Ambient Temperature 40 °C (104 °F)
Maximum Surface Temperature 70 °C (158 °F)
Minimum Operating Temperature -5 °C (23 °F)
Included Items
Included Cables Power Pro Cable
Included Rigging Bracket
Showtec Shark Beam One
- Brand: Showtec
- Product Code: 45032
- Availability: 5-7 Days
-
£583.50
- Ex Tax: £486.25
