• Supports Art-Net and sACN protocol

• 2 universes DMX input or output

• Remote Setup Interface

• PoE (IEEE 802.3 Af)

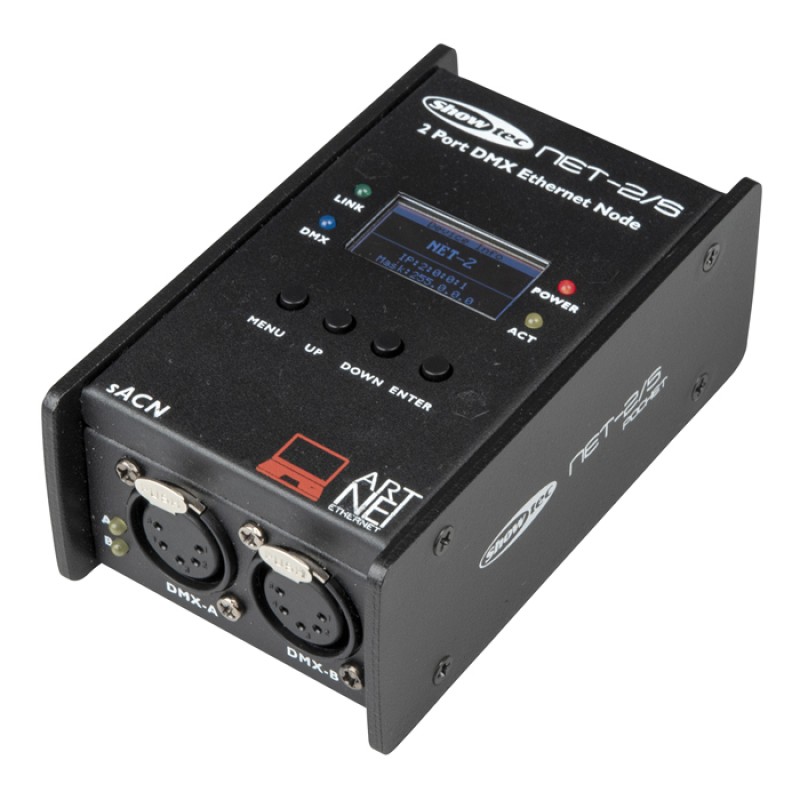

The Showtec NET-2/3 Pocket and NET-2/5 Pocket nodes are cutting-edge network routing devices which convert Art-Net or sACN to DMX512 and back. The power input can be provided by POE which makes the 12 V power supply superfluous.

A maximum of 1024 channels can be transported over a single CAT5. All settings can be done by the easy-to-use menu on the graphic display and buttons on the front.

Settings can also be arranged via the webbrowser possibility, which gives you (remote) access through your computer or laptop and your network. Default login account: Admin, password: Admin.

Specifications

Electrical Specifications and Connections

Power Supply    100-240 V AC 50/60 Hz (Power adapter)

Power over Ethernet (PoE)   Yes

Power Consumption   8 W

Power Connector In    Low Voltage DC plug

DMX Connector   XLR 5P In/Out

DMX Connector In   XLR 5P

DMX Connector Out    XLR 5P

Data Connector In   etherCON

Control and Programming

Control Mode   Art-Net, DMX, PC Software

Protocols   Art-Net, DMX, RDM, sACN, TCP-IPv4

Display   OLED

Universes    2

Power Adapter

Adapter type   AC-DC adapter

Input voltage   100-240 V AC, 50/60 Hz V

Output voltage    12 V DC

Mechanical Specifications

Length (mm)   115 mm (4.528″)

Width (mm)   67 mm (2.638″)

Height (mm)   44 mm (1.732″)

Weight    0.3 kg (0.661 lb)

IP Rating   IP20 (indoor use only)

Housing    Metal, Plastic

Colour   Black

Product Properties

LED Indicators    Operation mode, Power, Signal

Thermal Specifications

Maximum Ambient Temperature  40 °C (104 °F)

Minimum Ambient Temperature   -5 °C (23 °F)

Included Items

Included Cables    Low voltage DC plug cables

Included Accessories    Adapter
