• 100 W full-range battery speaker with Bluetooth and MP3 function

• Lightweight Class-D amplifier

• Can be used as floor monitor, tilt back, or PA system

• 5 hours charging time and 5 hour battery life at maximum output

• Built-in 2-channel amplifier with Bluetooth, USB, 3.5/6.3 mm jack and XLR input

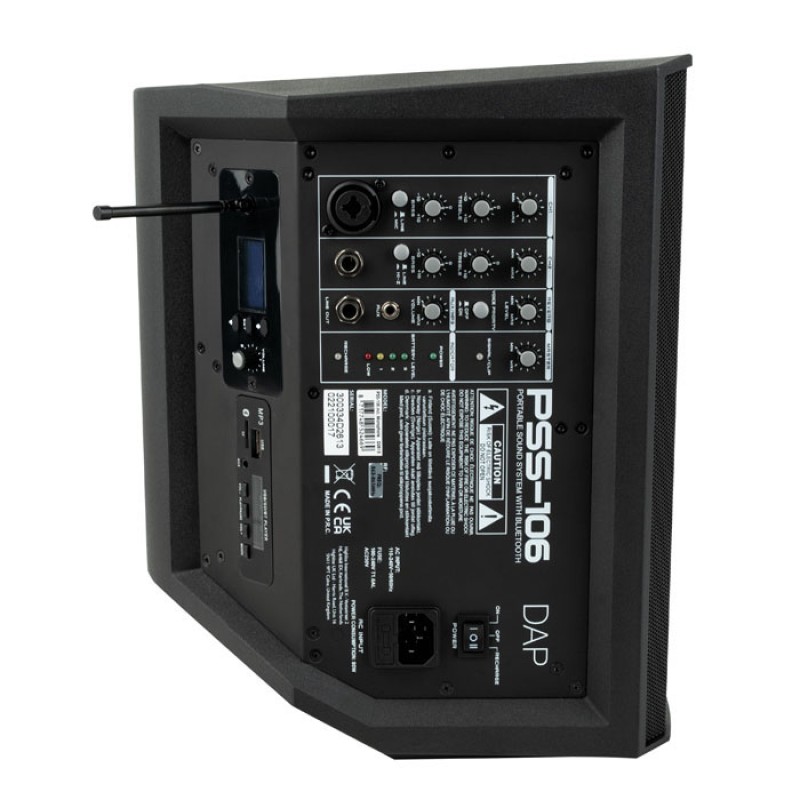

The DAP PSS-106 Battery Speaker with Wireless Receiver is a versatile mobile audio solution with a nice sounding 6.5" woofer and 1" tweeter. The design allows it to be used as a tilt-back floor monitor or as a small PA loudspeaker with a 35-mm pole mount. Two switches on the back and side automatically detect its application and adjust the frequency curve appropriately.

Equipped with a lightweight 2-channel class-D amplifier, two microphones (one wireless, one wired) and an audio source, like USB, a Bluetooth device or a device with (mini)jack output can be connected to the PSS-106. It has a built-in microphone receiver and comes with a dedicated wireless handheld microphone.

The battery lasts up to 5 hours at full output and is fully rechargeable in 5 hours. This makes it a very convenient and trustable mobile solution for a wide variety of applications.

Please note that a more economic PSS-106 speaker is also available without standard built-in microphone receiver and wireless handheld microphone.

Specifications

Outputs

Main Outputs                  1

Main Output Connector                    TRS balanced 6.3 mm

Low Driver Power                   90 W

High Driver Power                   10 W

Power Amplifier RMS Output                      100 W

Power Amplifier Peak Output                       160 W

Inputs

Mono Inputs                       2

Mono Input Connector                       3-pin XLR, TS unbalanced 6.3 mm

Balanced Mono Input Maximum Level                        1 dBu

Auxiliary Inputs                    1

Auxiliary Input Connector                   TRS balanced 3.5 mm

Unbalanced Auxiliary Input Maximum Level                             10 dBv

Playback

Supported Audio Files                              MP3

Media Input/Output                           USB-A, SD Card

Audio Specifications

Amp Technology                         Class D

Speaker System                             Battery Operated

Maximum SPL at 1 m                             110 dB

Frequency Response Minimum                   70 Hz

Frequency Response Maximum                        20000 Hz

Frequency Response (-6 dB) Minimum                      70 Hz

Frequency Response (-6 dB) Maximum                    20000 Hz

Crossover Frequency (High)                     1900 Hz

Woofer Diameter                     6.5 "

Woofer Voice Coil Diameter                   1.5 "

Compression Driver Diameter                     1 "

Compression Driver Magnet Type                     Neodymium

Microphone Type                  Dynamic

Dynamic Range                  100 dB

Sound Editing

Parametric Microphone Equalizer                  2 Bands

Microphone Input Equalizer Gain Range                          10 dB

Microphone Input Fixed Frequencies                       100, 10.000 Hz

Parametric Channel Equalizer                     2 Bands

Input Channel Equalizer Gain Range                 10 dB

Input Channel Fixed Frequencies                   100, 10.000 Hz

Built-in FX                    Yes

FX Types                Reverb

Wireless Specifications

Wireless Microphone Frequency Start                 863 MHz

Wireless Microphone Frequency End                     865 MHz

RF Power                    10 mW

RF Bandwidth                       2 MHz

RF Frequency Stability                    0.005%

Bluetooth Audio Profile              A2DP

Battery

Battery Type                  AA, Lithium ion

Battery Voltage            25.9 V

Capacity                2.2 Ah

Runtime @Full                5 h

Runtime Average               8 h

Charging Time                  5 h

Control and Programming

Display                LED

Electrical Specifications and Connections

Power Supply                       220-240 V AC 50 Hz

Power Consumption                     100 W

Fuse                     1.6 A

Power Connector In                       IEC

Mechanical Specifications

Height (mm)                     323 mm (12.717″)

Width (mm)                  240 mm (9.449″)

Depth (mm)                       265 mm (10.433″)

Transmitter Height (mm)                          48 mm (1.89″)

Transmitter Width (mm)                    48 mm (1.89″)

Transmitter Length (mm)                    245 mm (9.646″)

Material                   ABS

Weight                     5.9 kg (13.007 lb)

Transmitter Weight                 0.2 kg (0.441 lb)

IP Rating                  IP20 (indoor use only)

Colour                  Black

Finish               Painted

Product Properties

VOX                 Yes

Pole Mount               35 mm

Cooling                 Convection

Electronic Protection                Clip limiter, Overheat, Overload, Thermal

LED Indicators                 Battery status, BT Pairing, Charging, Power, Protect, Signal

Speaker Grille Material                   Steel

Speaker Handle Positions                   Top

Castors                  None

Thermal Specifications

Maximum Ambient Temperature                40 °C (104 °F)

Minimum Ambient Temperature               5 °C (41 °F)

Included Items

Included Cables             IEC cable

Included Accessories            Microphone Wireless
