2x mono and 4x stereo inputs with EQ, pan and volume controls
Ultra low noise preamps
+48 V phantom power for condenser microphones
2 microphone compressors

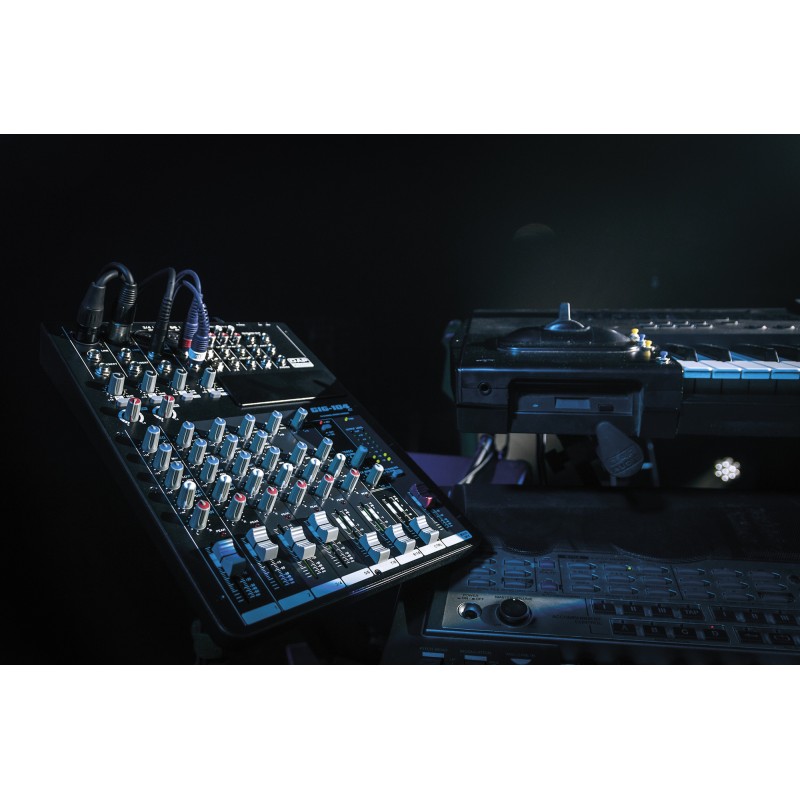

The DAP GIG-104C is a 10-channel live mixer with 4 stereo and 2 mono inputs including +48 V phantom power for connecting either dynamic and condenser microphones. Both mono and two stereo signals include a 3-bands EQ. The other two stereo signals include a 2-bands EQ. The first two mono signals have an onboard compression module to ensure that the vocals are even and well intelligible.
It is possible to use an external effect device thanks to its send- and return connections. Besides, you can integrate the MP3 USB Record Module that is especially designed for DAP GIG analogue mixers.
Specifications
Inputs
Mono Inputs 4
Mono Input Connector 3-pin XLR, TRS balanced 6.3 mm
Mono Input Gain Range 20 dB
Mono Input Impedance 1800 Ω
Balanced Mono Input Sensitivity 15 dBu
Stereo Inputs 4
Stereo Input Connector 3-pin XLR, RCA, TS unbalanced 6.3 mm
Stereo Input Gain Range 40 dB
Stereo Input Impedance 10000 Ω
Unbalanced Stereo Input Sensitivity 20 dBv
2-track Audio Input Yes
Stereo Return Input Yes
Outputs
Main Outputs 1
Main Output Connector TS unbalanced 6.3 mm
Main Output Impedance 120 Ω
Auxiliary Outputs 1
Auxiliary Output Connector TS unbalanced 6.3 mm
Auxiliary Output Impedance 120 Ω
Control Room Output 1
Control Room Output Connector TS unbalanced 6.3 mm
