100 effect presets, such as chorus, delay and reverb
4 microphone compression modules
4x mono and 4x stereo input channels
+48 V phantom power suitable for dynamic and condenser mics

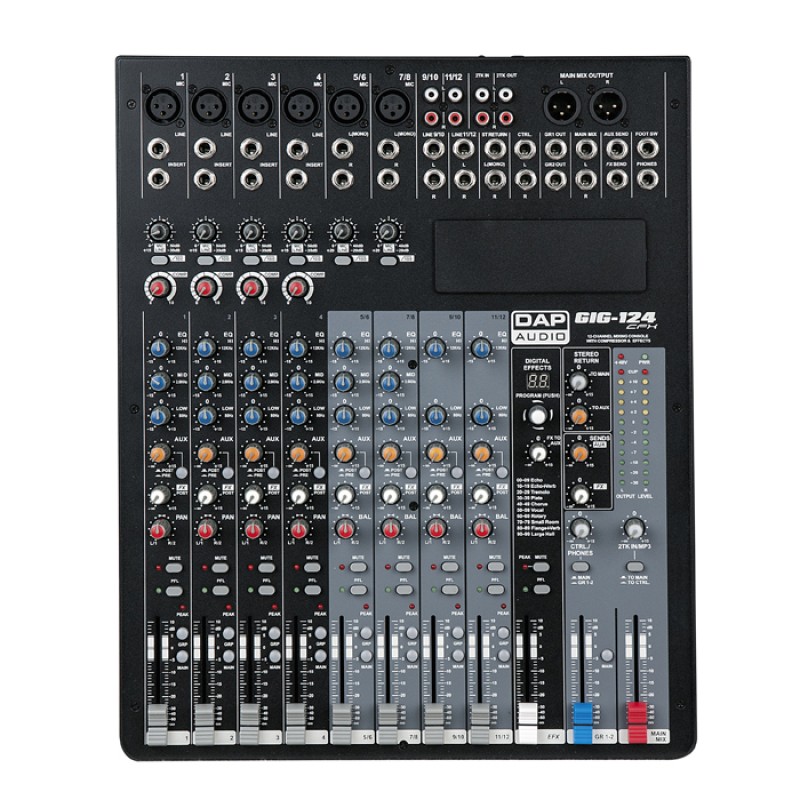

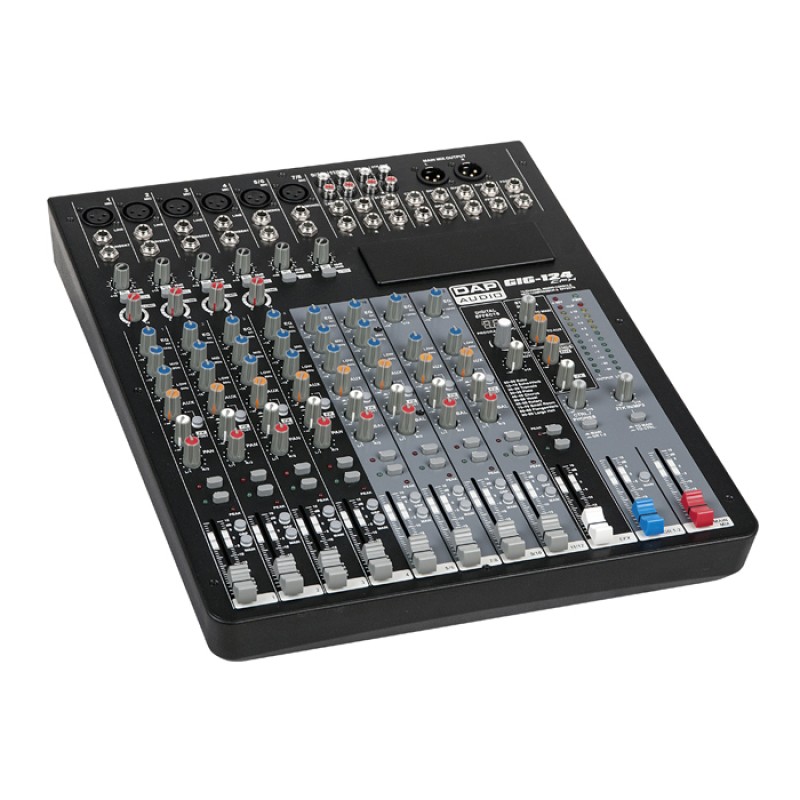

The DAP GIG-124CFX is a 12-channel live mixer with 4 stereo and 4 mono inputs including +48 V phantom power for connecting both dynamic and condenser microphones. The mono and first two stereo signals include a 3-bands EQ and the last two stereo signals include a 2-bands EQ.
Equipped with a 24-bit DSP effect, the GIG-124CFX has 100 individually assignable presets for adding a nice effect, such as chorus, delay and reverb. In addition, all mono signals have an onboard compression module for ensuring all vocals are even and well intelligible.
An external effect device is optional due to its send and return connections. Besides, you can integrate the MP3 USB Record Module that is especially designed for DAP GIG analogue mixers.
Specifications
Inputs
Mono Inputs 6
Mono Input Connector 3-pin XLR, TRS balanced 6.3 mm
Mono Input Gain Range 50 dB
Mono Input Impedance 1800 Ω
Balanced Mono Input Sensitivity 15 dBu
Stereo Inputs 4
Stereo Input Connector RCA, TS unbalanced 6.3 mm
Stereo Input Gain Range 40 dB
Stereo Input Impedance 10000 Ω
Unbalanced Stereo Input Sensitivity 15 dBv
2-track Audio Input Yes
Stereo Return Input Yes
FX Return Inputs 1
FX Return Connector TS unbalanced 6.3 mm
FX Return Impedance 10000 Ω
Outputs
Main Outputs 1
Main Output Connector 3-pin XLR, TS unbalanced 6.3 mm
Main Output Impedance 120 Ω
Auxiliary Outputs 1
Auxiliary Output Connector TS unbalanced 6.3 mm
Auxiliary Output Impedance 120 Ω
Group Outputs 2
Group Output Connector TS unbalanced 6.3 mm
Group Output Impedance 120 Ω
FX Send Outputs 1
FX Send Connector TS unbalanced 6.3 mm
FX Send Impedance 120 Ω
Control Room Output 1
Control Room Output Connector TS unbalanced 6.3 mm
