• Pixel tube with 16 RGB pixels

• Daisy-chainable

• 50 cm

• Controllable by the Pixelcontroller through DMX / Art-Net / Kling-Net

• Black frosted cover

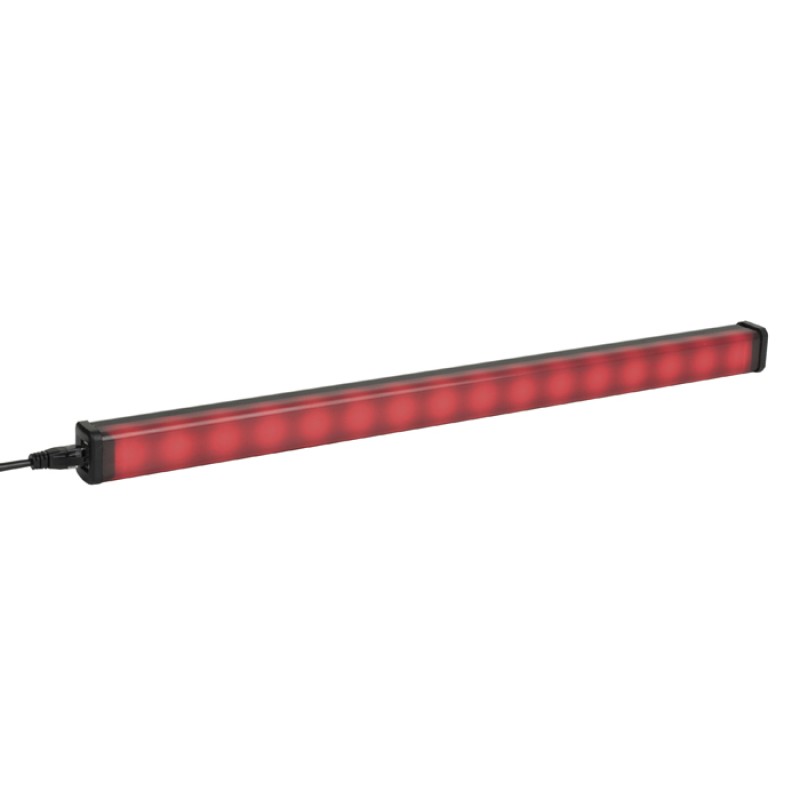

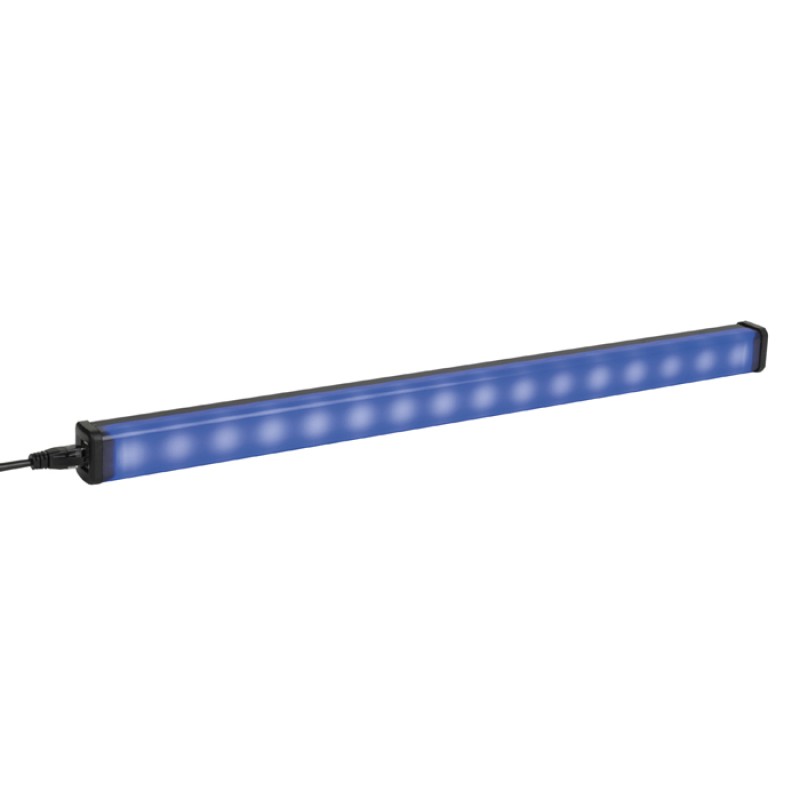

The Showtec Pixeltube 16 is a daisy-chainable 50-cm (1.65 ft) long tube containing 16 individually controllable RGB pixels in a black frosted cover, suitable for creating stunning light effects. Driven by the dedicated Pixelcontroller, the Pixeltube 16 and Pixeltube 32 can be easily daisy-chained in any way you like through a single Cat cable up to 5 metres (16.4 ft) of total length per output port. Its flexible rigging system allows easy attachment to truss or 50-mm (2”) pipe without the need for tools. Two one-clamp-mounts and a 150 cm (4.9 ft) RJ45 cable are included.

Specifications

Source

Light Source Type          LED

Light Source Quantity              16

Light Source Power              1 W

Refresh Rate              1300 Hz

Control and Programming

Control Mode         Art-Net, Built-in Program, DMX, Kling-Net, Manual, Master Slave

DMX Channels            48

Protocols           Art-Net, DMX, Kling-Net

Optical

Pixel Pitch                30 mm (1.181″)

Dynamic Effects

Dimmer                0-100 %

Strobe             0-20 Hz

Electrical Specifications and Connections

Power Supply              24 V DC

Data Connector In               RJ45

Data Connector Out              RJ45

Mechanical Specifications

Height (mm)               29 mm (1.142″)

Width (mm)                    32 mm (1.26″)

Length (mm)                504 mm (19.843″)

Weight                0.13 kg (0.287 lb)

IP Rating               IP20 (indoor use only)

Housing                Plastic

Colour               Black, Frost

Product Properties

Cooling              Convection

Rigging

Mounting Options            Clamp

Thermal Specifications

Maximum Ambient Temperature              40 °C (104 °F)

Included Items

Included Cables             CAT-5 Cable

Included Rigging             Dedicated Clamp
