- 100 cm / 40 RGB pixels
- Flexible rigging system
- Various front covers available

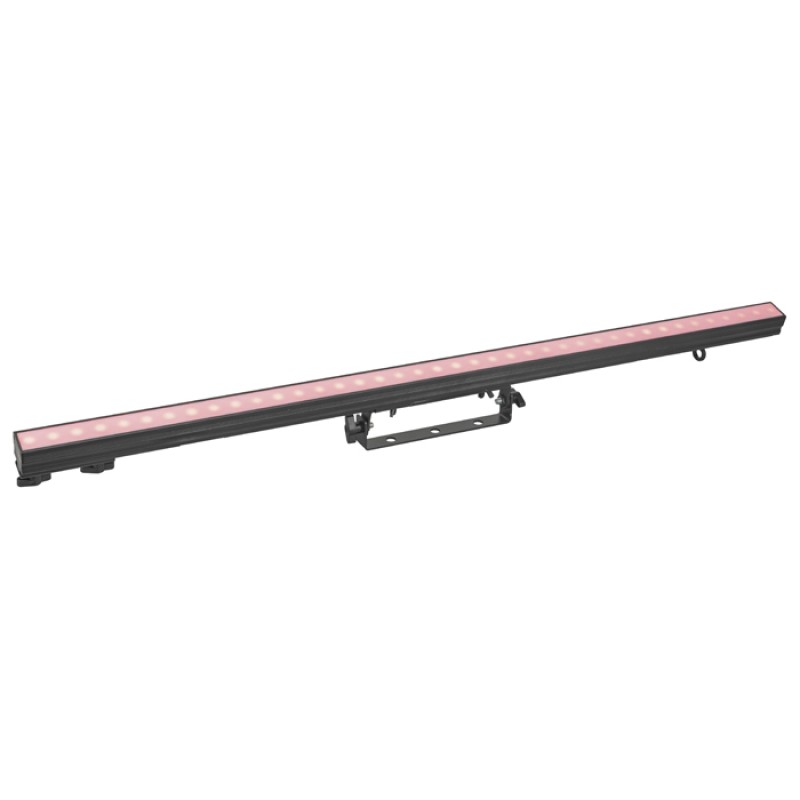

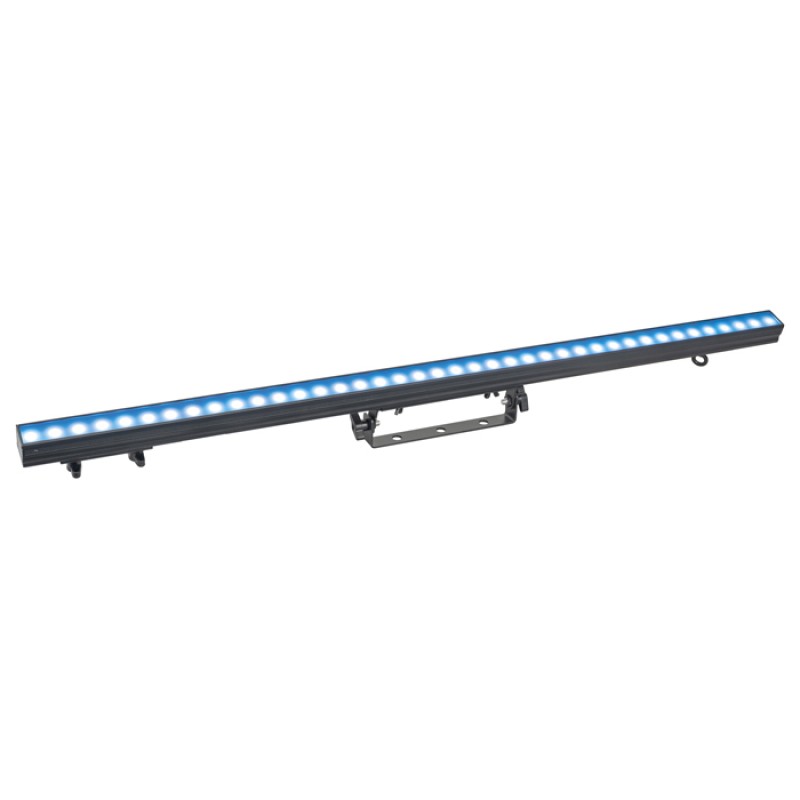

The Showtec Pixelstrip 40 is a 100 cm Pixelstrip with 40 individual controllable RGB pixels.
It comes with standard black frosted cover, the front cover can be changed easily for the optional available: Acrylic Flat Cover Milky(44503) or Acrylic Dome Cover White(44505)
Pixelstrip 40 only works with the dedicated Pixelcontroller (44510). All Pixelstrips can be daisy-chained easily and connected to the Pixel controller by a single Cat cable.
You can use and mix Pixelstrip 40 & 20 anyway you want (up to 4 m. Pixelstrip per output port)

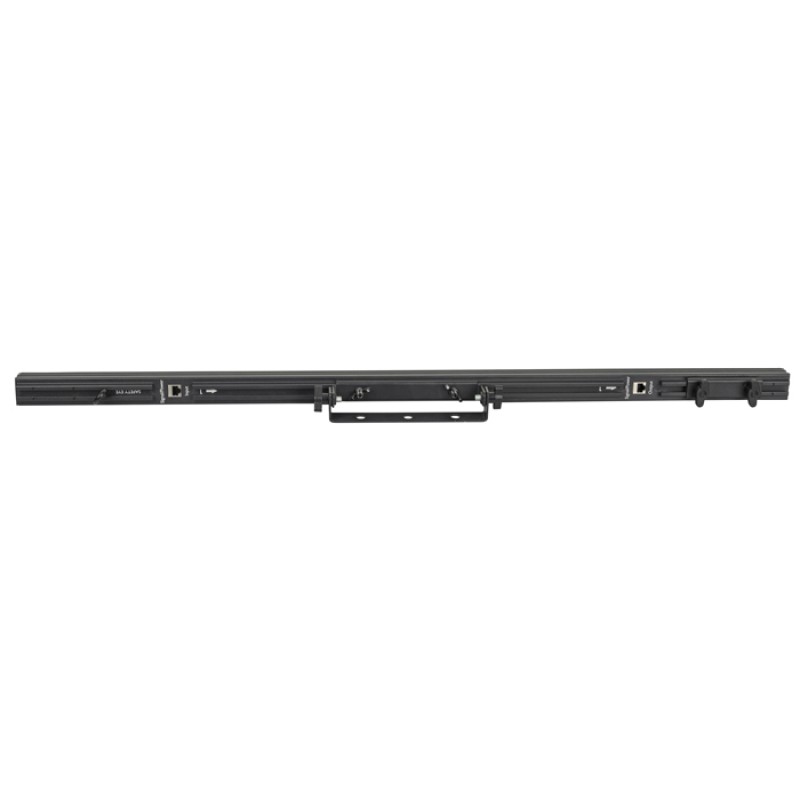

Due to the flexible rigging-system it can be rigged easily to any structure, the side connecting plate allows users to align strips perfectly. Pixelstrip 40 is the perfect tool to create amazing effects.
Specifications
Source
Light Source Type LED
Light Source Quantity 40
Light Source Power 3 W
LED Colour Type RGB
Refresh Rate 1440 Hz
Luminous Flux (Total) 175 lm
Control and Programming
Control Mode Auto, DMX, Manual, Master Slave
Protocols Art-Net, DMX, Kling-Net
Zone Control (Sections) 40
Optical
Pixel Pitch 25 mm (0.984″)
Dynamic Effects
Dimmer 0-100 %
Electrical Specifications and Connections
Power Consumption 22 W
Data Connector RJ45 In/Out
Data Connector In RJ45
Data Connector Out RJ45
Mechanical Specifications
Height (mm) 1000 mm (39.37″)
Width (mm) 37 mm (1.457″)
Depth (mm) 100 mm (3.937″)
Weight 1.3 kg (2.866 lb)
IP Rating IP20 (indoor use only)
Housing Metal
Colour Black
Product Properties
Cooling Convection
Rigging
Mounting Options Bracket, Clamp
Thermal Specifications
Maximum Ambient Temperature 40 °C (104 °F)
Minimum Ambient Temperature -5 °C (23 °F)
Included Items
Included Cables CAT-5 Cable
Included Accessories Connection Plate
Included Rigging Bracket
Showtec Pixelstrip 40
- Brand: Showtec
- Product Code: 44502
- Availability: 5-7 Days
-
£120.00
- Ex Tax: £100.00
