• CNC machined foam interiors for max protection

• 9 mm high grade plywood carcass construction

• All Penn-Elcom hardware

• 100 mm castors with safe weight loading of 400 kg fitted as standard

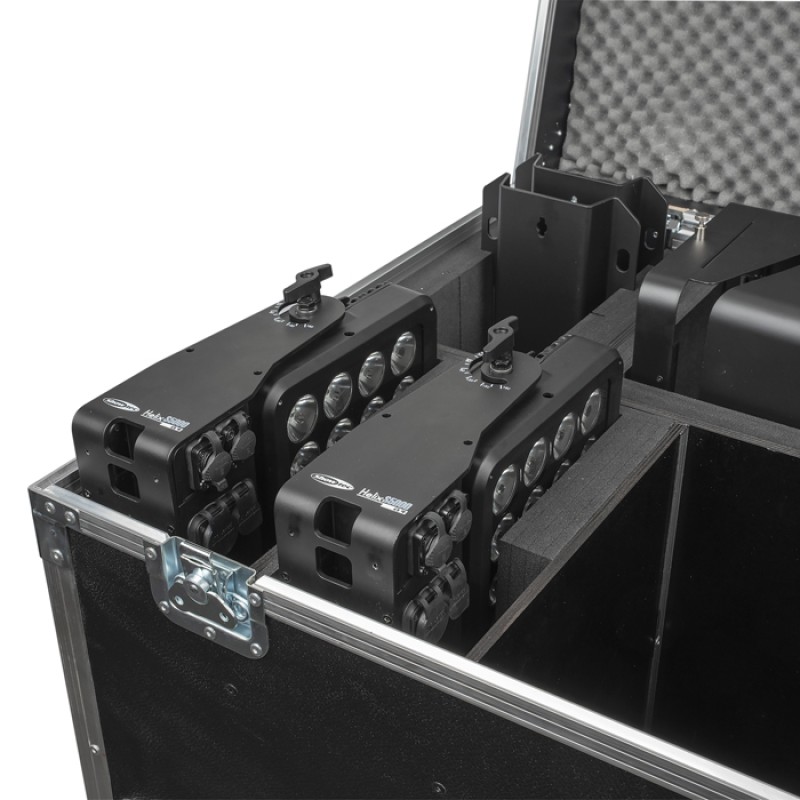

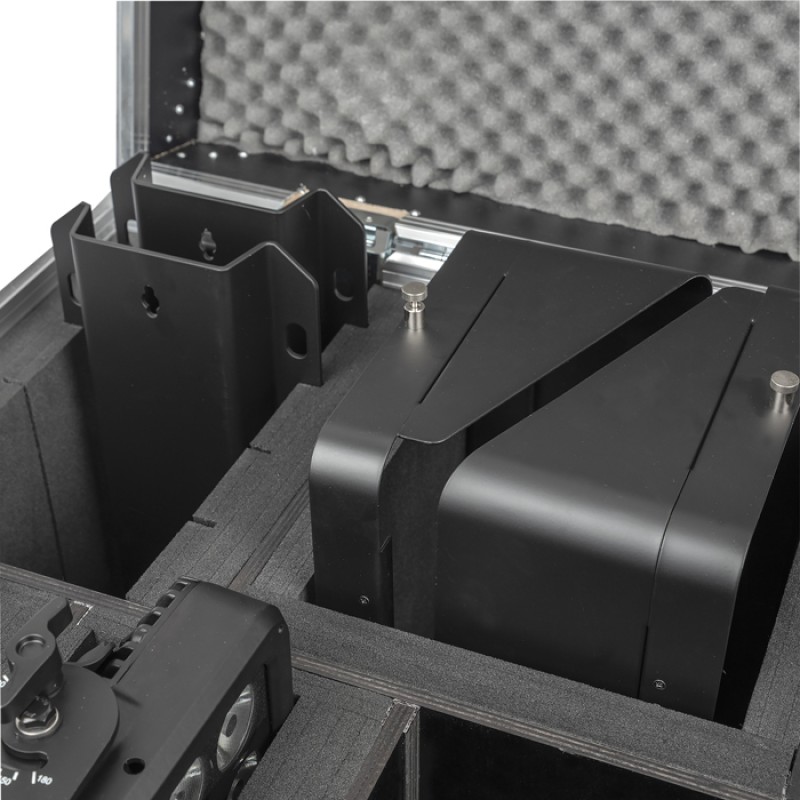

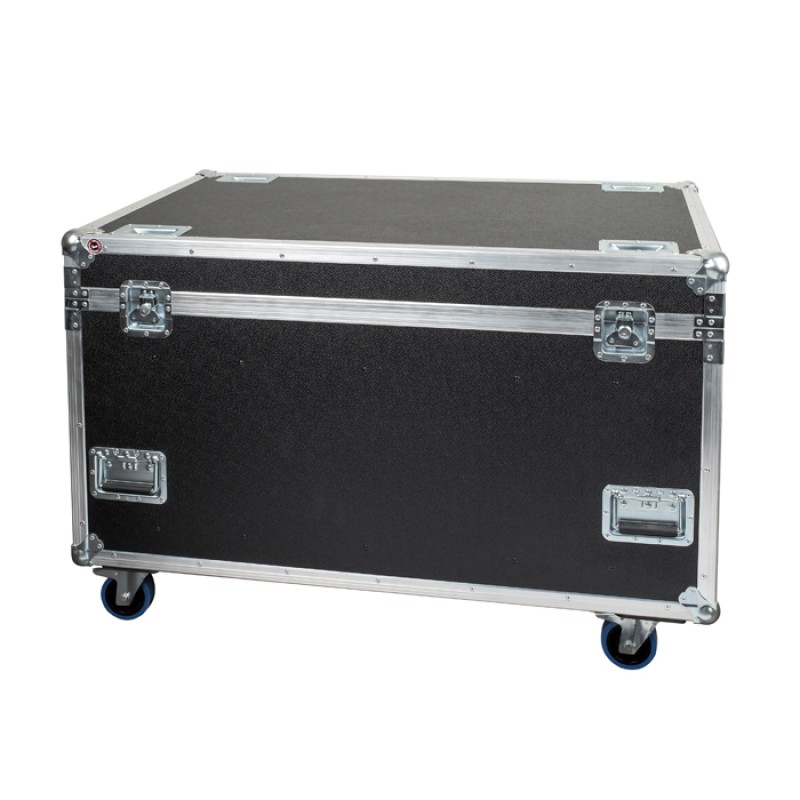

Flightcase for 4 pcs Helix S5000 with separate compartments for the corresponding optional accessories. Four mountingbrackets, four tophats, four barndoors, eight beamshapers and room for clamps, cables, quicklocks and safety cables. The perfect transportation method to make sure that your Helix units stay safe and complete on the road.

Specifications

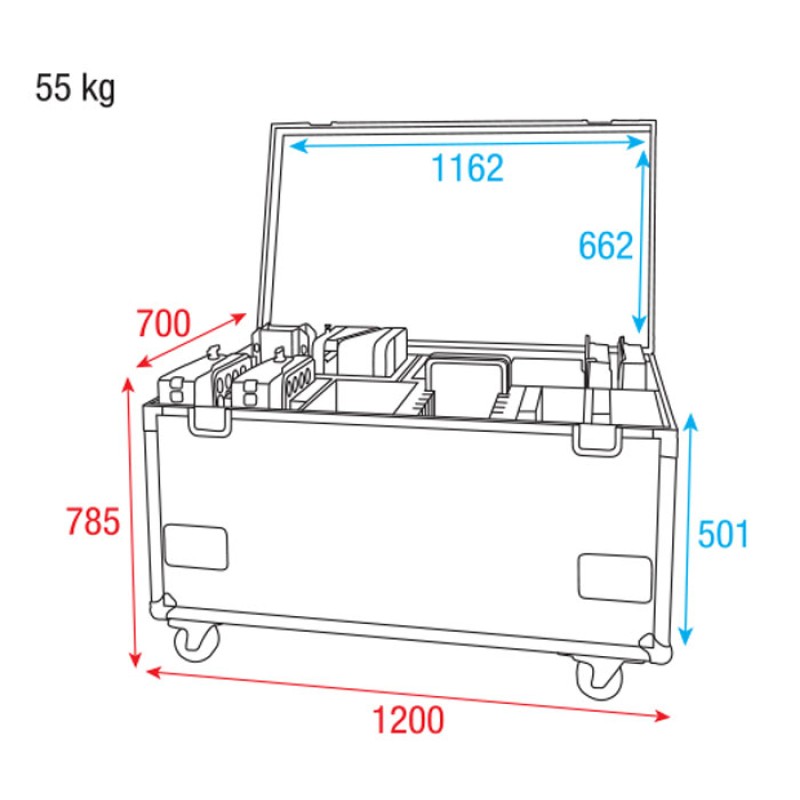

Mechanical Specifications

Height (mm)               785 mm (30.906″)

Width (mm)                  1200 mm (47.244″)

Depth (mm)                    700 mm (27.559″)

Weight                    55 kg (121.254 lb)

IP Rating                    IP20 (indoor use only)

Material                      Wood

Material Thickness                    9 mm (0.354″)

Fabric                Foam

Colour                 Black

Product Properties

Flightcase Application                  Light Case

Packing Capacity                    4 pcs

Handles                    Front, Back, Left side, Right side

Handle Type                    Recessed

Tour Label Space                     No

Aluminium Extrusion Frame Size                     30 mm x 30 mm

Castors                  4

Castor Size                 100 mm

Castor Type                  Swivel with brake + without brake

Latch Type                  Butterfly

Latch Brand               Penn Elcom

Hinge Type               Fixed

Accessories Pocket               Yes
